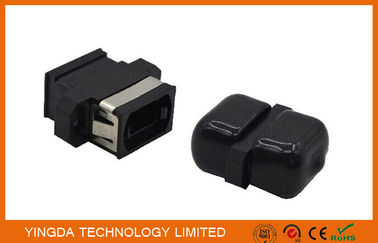

SC Footprint 12 Core Mpo / Mtp Multi Mode Fiber Adapter Coupler Flange Connector

محل منبع چین
نام تجاری YINGDA
گواهی ISO,SGS
شماره مدل MPO / MTP
مقدار حداقل تعداد سفارش 10PCS
قیمت Negotiable
جزئیات بسته بندی 1pc / box

برای نمونه و کوپن رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
color Black material plastic PC / ABS
connector MPO / MTP adaptor fiber count 12 fiber / 24 fibers
برجسته

,

,

bare fiber adapter

پیام بگذارید
توضیحات محصول

SC Footprint 12 Core Mpo / Mtp Multi Mode Fiber Adapter Coupler Flange Connector





Features

  1. Compact size, precise design,
  2. guarantee high - density optical fiber docking,
  3. low insertion loss



Application

  • MPO or MTP fiber jumper / pigtail connection, docking

SC Footprint 12 Core Mpo / Mtp Multi Mode Fiber Adapter Coupler Flange Connector 0



The fiber optic adapter is usually called the flange coupler, which is mainly used for the connection

between the optical fiber connector and the fixation, so that the optical signal can be transmitted

with a small insertion loss.



YINGDA MPO fiber optic adapter connetion is different with the simplex SC adapter, SC fiber optic

adapter has ceramic sleeve inside, which makes the core connection for precise alignment, but

MPO adapter connect according to the end surface 2pcs guide hole and guid pin whose diameter

is 0.7mm. So MPO adapter don't have singlemode or multimode, but SC fiber optic adapter have

due to different sleeve. MPO adapter is widely used in communication system base station, building

room fiber distribution (ODF), MPO box, a variety of test instruments.



12/24 core single mode multimode general use MPO/MTP fiber adapter is the manufacturer sell

direct, standard delivery time:2days -3days. Color can be customized according to customer

requirements, non quality problems do not accept returns, specific problems please contact

customer service online or telephone: 18688982406 to make order or consult. We will take

the highest quality service, the quickest technical support to help the parents complete the order.



SC Footprint 12 Core Mpo / Mtp Multi Mode Fiber Adapter Coupler Flange Connector 1

Specification



Connector

MPO / MTP

Color

Black / aqua

Test wavelength

1310nm, 1550nm, 850nm, 1300nm

Insertion loss

typical<0.20dB, maximum< 0.30dB

Repeat ability

≤0.10dB

Interchangeable

≤0.20dB

Plug performance

Plug 500, <0.20dB

Adapter material

Plastic PC

Working temperature

0℃ to +70℃

Storage temperature

-40℃ to +85℃



SC Footprint 12 Core Mpo / Mtp Multi Mode Fiber Adapter Coupler Flange Connector 2SC Footprint 12 Core Mpo / Mtp Multi Mode Fiber Adapter Coupler Flange Connector 3
