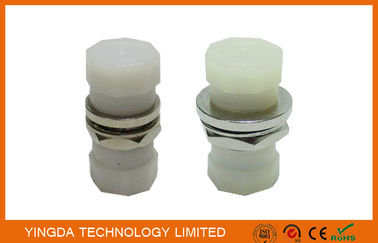

Hybrid Fiber Optic Adapter Adaptor Coupler Metal SM / MM FC Fiber Optic Connector

مقدار تولیدی:	100PCS
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	50PCS / BOX

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

Model Number

FC adapter

MATERIAL:

ZINC ALLOY / COPPER

dust cap color:

red / white

fiber count:

1 core

type:

fiber adapter

shape:

FC adaptor small D hold

fiber mode:

singlemode multimode

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

bare fiber adapter

توضیحات محصول

Hybrid Fiber Optic Adapter Adaptor Coupler Metal SM / MM FC Fiber Optic Connector

Fiber optic adapter (known as flanges, coupler ) is the active optical connector. We have complete

series, including FC, SC, St, LC, MTRJ, and hybrid fiber adaptors such as ST-SC, FC-ST etc.,

which are widely used for optical distribution frame (ODF), optical fiber communication equipment,

instruments, its performance is stable and reliable.

Main performance:

fiber optic is connected by the adapter through its internal opening sleeve. we offer a variety of shapes

high performance adapters in order to ensure the highest connectivity between the optical fiber jumper.

In order to fixed on various panels, we design a variety of fine mounting flange.

Hybrid adapter can connect different types of optical fiber connector interface, and provides the

connection between the APC end. Duplex or Quad improve the installation density. No matter

material, size tolerance, or outer appearance, we ensure aesthetic high quality.

Hybrid Fiber Optic Adapter Adaptor Coupler Metal SM / MM FC Fiber Optic Connector 0

Application

Fiber Optic Telecommunication system
Fiber Data Transmission
Optical Test Instruments
CATV fiber optic
Fiber Access network
Fiber Optic Sensor

Specification

Brand	YINGDA
Name	FC D type adapter
Type	PC UPC APC
Working temperature	1200-1600nm
Attenuation accuracy	≤0.2dB
Return loss	≤0.3dB
Repeat ability	≤0.1dB
Interchange ability	≤0.2dB
Sleeve material	Ceramic or metal
Working temperature	-40~+80°C
Storage temperature	-40~+85°C
Plug life	>1000 Times
Reference standard	YD/T 1272.4-200

Test item	Test condition
Temperature and humidity aging	Temperature: 85°C, 85% relative humidity,14days
Temperature cycling	Temperature -40~+75°C,10%-85% relative humidity, 42 cycle,14days
Immersion	Temperature: 43°C, PH5.5, 7days
Vibration	Amplitude 1.52mm, frequency 10Hz ~ 55Hz, X, Y, Z three directions for 2 hours
Reference standard	YD/T 1272.4-2007

Hybrid Fiber Optic Adapter Adaptor Coupler Metal SM / MM FC Fiber Optic Connector 1
