FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter

مقدار تولیدی:	10PCS
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	1PCS / BOX

اطلاعات دقیق

توضیحات محصول

امتیازها و نظرات

اطلاعات دقیق

محل منبع

نام تجاری

YINGDA

گواهی

Model Number

FC bare fibre adapter

MATERIAL:

metal

dust cap color:

green

type:

fiber adaptor

shape:

bare fiber 250um adapter

fiber mode:

single mode

insertion loss:

Repeatability:

< 0.2db

warranty:

2 years

temperature:

-40 to +85 degree

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

برجسته کردن:

,

fiber optic adaptor

توضیحات محصول

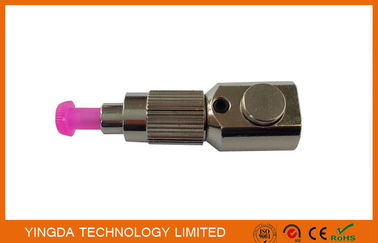

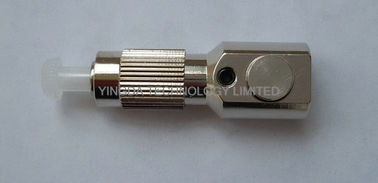

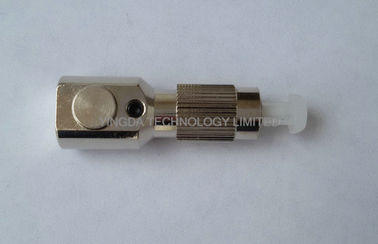

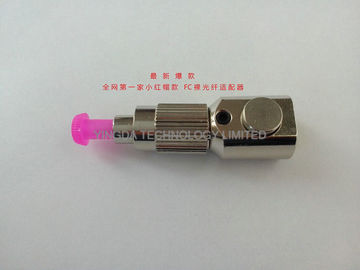

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter

Bare fiber adapters provide a simple and effective way to use un-terminated fibers

with commercial receptacles.

Simply strip and cleave your fiber and insert in to the bare fiber adapter. Broken fibers are easily

removed with piano wire, allowing hundreds of insertions. They are recommended for power meter

hook-ups, temporary system repairs or wherever a quick fiber connections is required.

1. Application:

Bare fiber connection.
Optical fiber through connection test.
Two-way communication during optical-fiber cable installation and maintenance.

2. Feature:

Simple to use
Suitable for fibers with coating diameters of 250um & 900um.
Optical fiber with hole dia. between 123-127um can be used.
Multimode or Singlemode connectors.

3. Specification:

Item		LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc
Type		Multi-Mode	Single-Mode
Light Characteristic	OperatingWavelength	850nm&1300nm	1310nm & 1550nm
	Typical Insertion Loss	0.2dB & 0.2dB	0.2dB & 0.2dB
Mechanical Testing	Repeatability	≤0.2dB
	Exchange	≤0.2dB
	Durability	>1000 (Times)
Temperature	Storage Temperature	25 ~+85
	OperatingTemperature	25 ~+85
Length,Color,Out-Diameter,Fiber counts		According to the customers' requirement

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter 0

امتیازها و بررسی‌ها

امتیاز کلی

5.0

بر اساس 50 بررسی برای این تامین‌کننده

بررسی اجمالی امتیاز

توزیع تمام رتبه‌بندی‌ها به شرح زیر است.

5 ستاره‌ها

100%

4 ستاره‌ها

3 ستاره‌ها

2 ستاره‌ها

1 ستاره‌ها

تمام بررسی ها

A*e

Indonesia Feb 7.2025

مفید (3)

Everything excellent, from the treatment in the negotiation, delivery time, and the quality of their product very good Delivery： 100% Quality： 100% Design： 100% Service： 100%

P*e

South Korea Jan 31.2025

مفید (5)

It was sent very quickly Service: Good service from my salesperson. And low IL ≤0.35dB

C*s

France Nov 19.2024

مفید (2)

Product was exactly as in pictures with good quality and packing.

برچسب ها:

fiber optic coupler,bare fiber adapter,fiber optic adaptor,

,,

محصولات

مقدار تولیدی:	10PCS
قیمت:	0.04USD-2.15USD
بسته بندی استاندارد:	1PCS / BOX

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع

چین

نام تجاری

YINGDA

گواهی

iso

Model Number

FC bare fibre adapter

MATERIAL:

metal

dust cap color:

green

type:

fiber adaptor

shape:

bare fiber 250um adapter

fiber mode:

single mode

insertion loss:

<1dB

Repeatability:

< 0.2db

warranty:

2 years

temperature:

-40 to +85 degree

نام محصول:

کابل mpo به mpo، کابل mpo به lc، کانکتور نوری mtp، کاست mtp

Minimum Order Quantity:

10PCS

قیمت:

0.04USD-2.15USD

Packaging Details:

1PCS / BOX

برجسته کردن

,

fiber optic adaptor

توضیحات محصول

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter

Bare fiber adapters provide a simple and effective way to use un-terminated fibers

with commercial receptacles.

Simply strip and cleave your fiber and insert in to the bare fiber adapter. Broken fibers are easily

removed with piano wire, allowing hundreds of insertions. They are recommended for power meter

hook-ups, temporary system repairs or wherever a quick fiber connections is required.

1. Application:

Bare fiber connection.
Optical fiber through connection test.
Two-way communication during optical-fiber cable installation and maintenance.

2. Feature:

Simple to use
Suitable for fibers with coating diameters of 250um & 900um.
Optical fiber with hole dia. between 123-127um can be used.
Multimode or Singlemode connectors.

3. Specification:

Item		LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc
Type		Multi-Mode	Single-Mode
Light Characteristic	OperatingWavelength	850nm&1300nm	1310nm & 1550nm
	Typical Insertion Loss	0.2dB & 0.2dB	0.2dB & 0.2dB
Mechanical Testing	Repeatability	≤0.2dB
	Exchange	≤0.2dB
	Durability	>1000 (Times)
Temperature	Storage Temperature	25 ~+85
	OperatingTemperature	25 ~+85
Length,Color,Out-Diameter,Fiber counts		According to the customers' requirement
