Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network

Name: Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ODC male
Price: 14.36 USD
Availability: InStock

نام تجاری:	YINGDA
شماره مدل:	ODC male
مقدار تولیدی:	10pcs
قیمت:	0.36USD-30USD

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

ISO SGS CE ROHS

application:

fiber to the antenna,defense,Industry, Aerospace

cable:

outoor waterproof

cable jacket:

black LSZH

connector:

LC SC FC ST ok

fiber count:

2 cores

length:

on customer request

logo:

OEM

label:

OEM

نام محصول:

کابل فیبر نوری، پچ کابل فیبر نوری، پچ کورد فیبر نوری، جامپر فیبر نوری، کابل جامپر فیبر نوری، پچ کورد

Packaging Details:

1pc/pack

برجسته کردن:

fiber optic patch cable,fiber optic jumper

fiber optic jumper

توضیحات محصول

Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network

Description:

The ODC Connector together with the far transmission cable, are becoming the standard interface

specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.

The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection

class IP67. They are well suited for Industrial and Aerospace and Defense applications.

Application

Indoor and Outdoor applications
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Railway signal control.
Intelligent substation

Feature:

Screwed locking mechanism, confirm the connection is long-term and reliable.
Guide structure, can be installed blindly, simply and quickly.
Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
Compact appearance, robust and flexible.
Sealing design through wall.
Reduce the times of splicing.

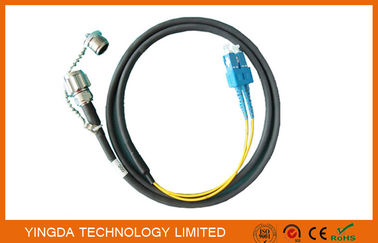

ODC Cable structure

Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network 0

Specification

Insertion loss	≤0.8dB
Repeat ability	≤0.5dB
Fiber core	2
Mating times	≥500N
Working temperature	-40~+85°C

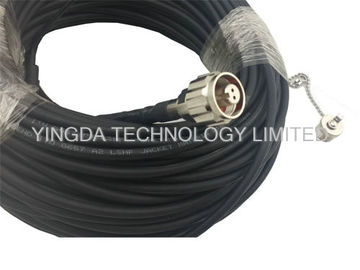

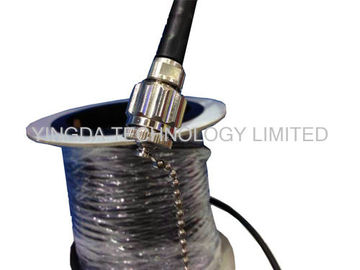

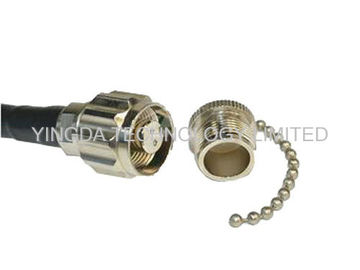

More photos

Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network 1

Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network 4
